AEMS-RD

Holosun Logo

Holosun

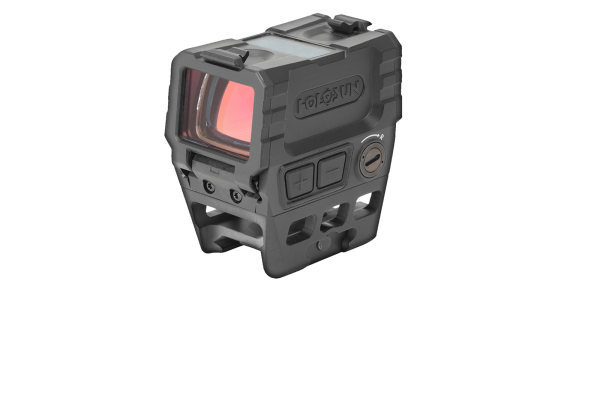

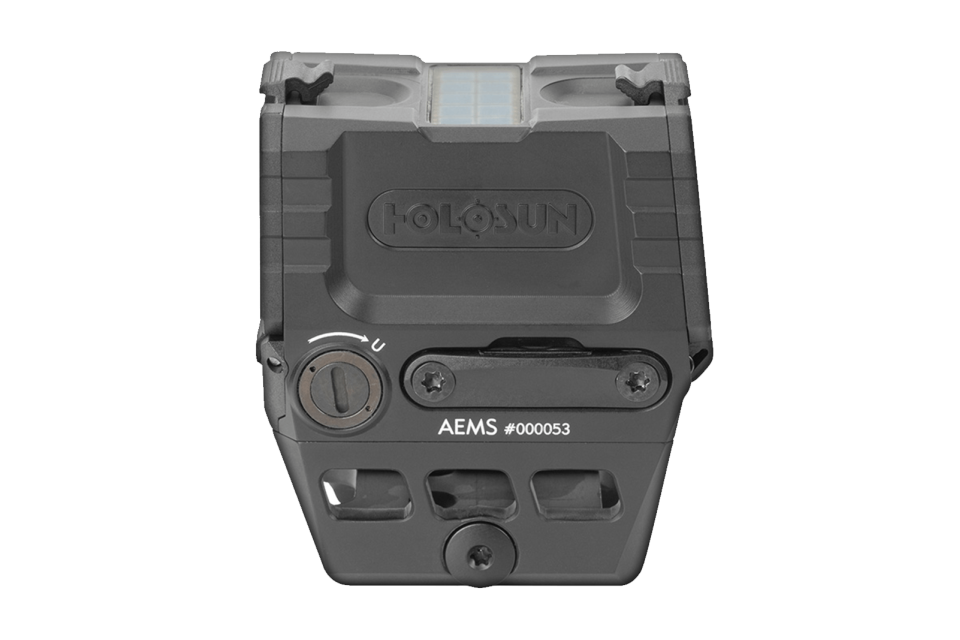

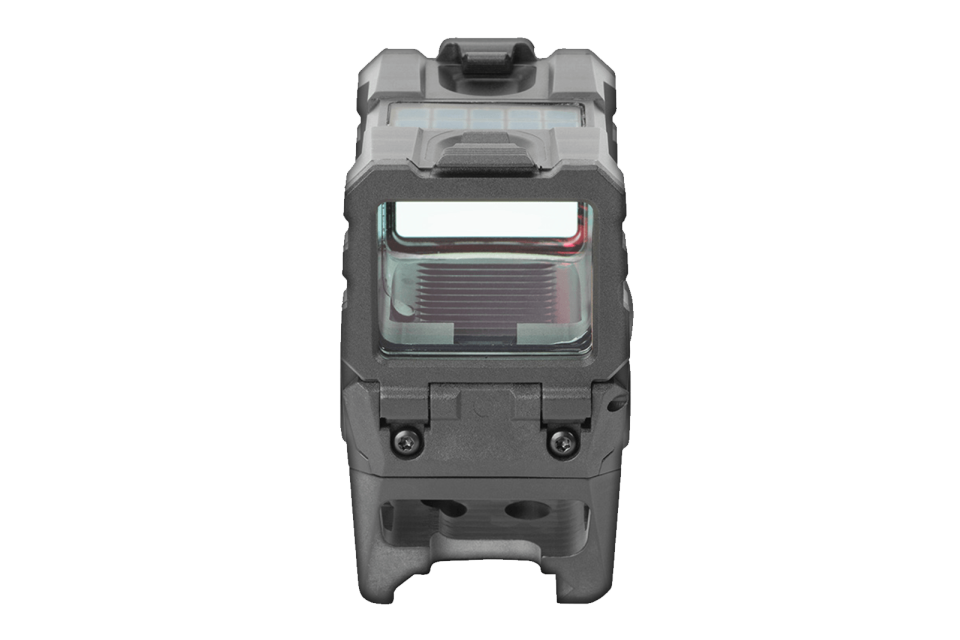

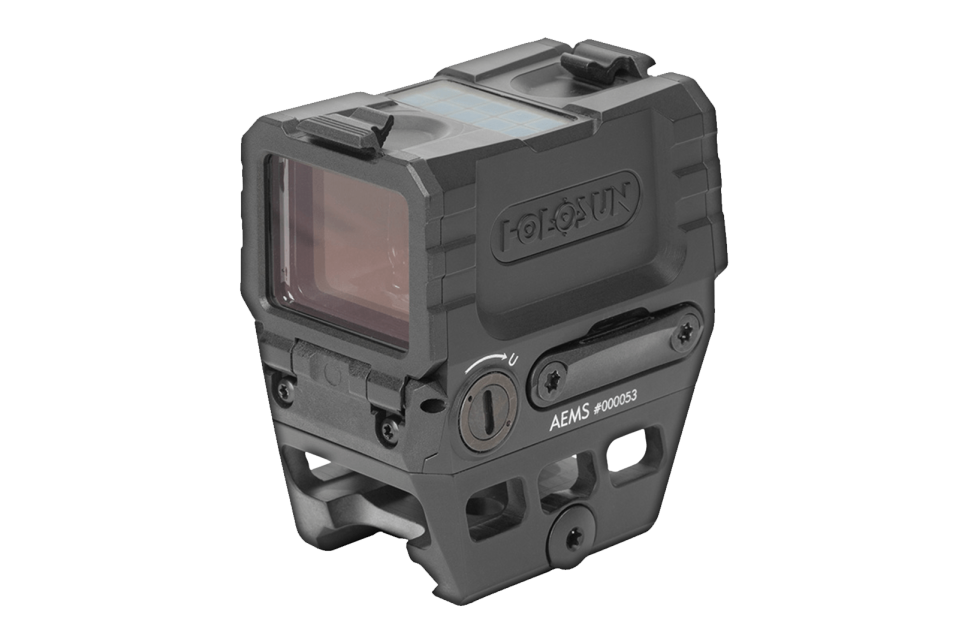

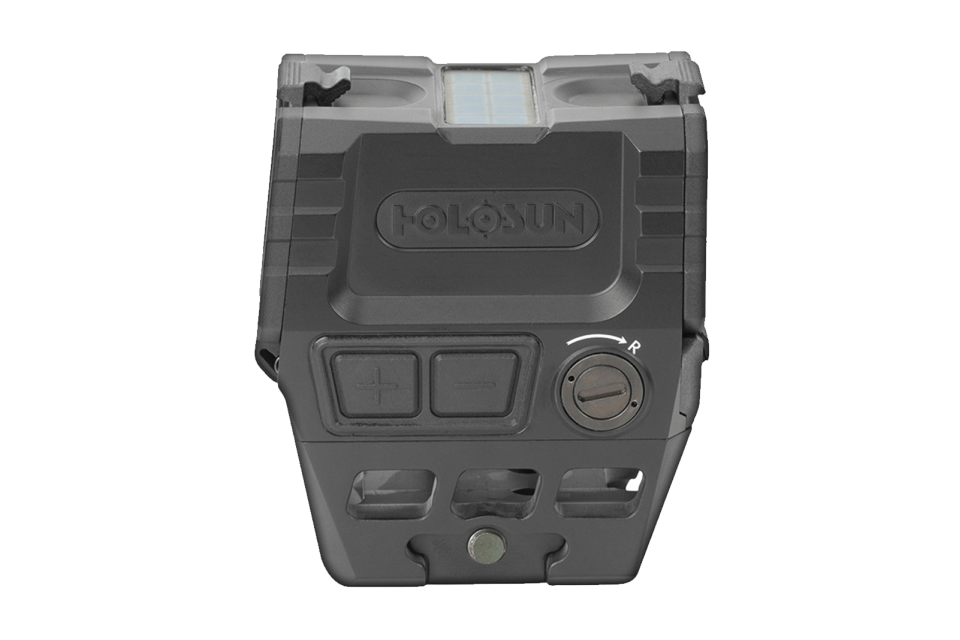

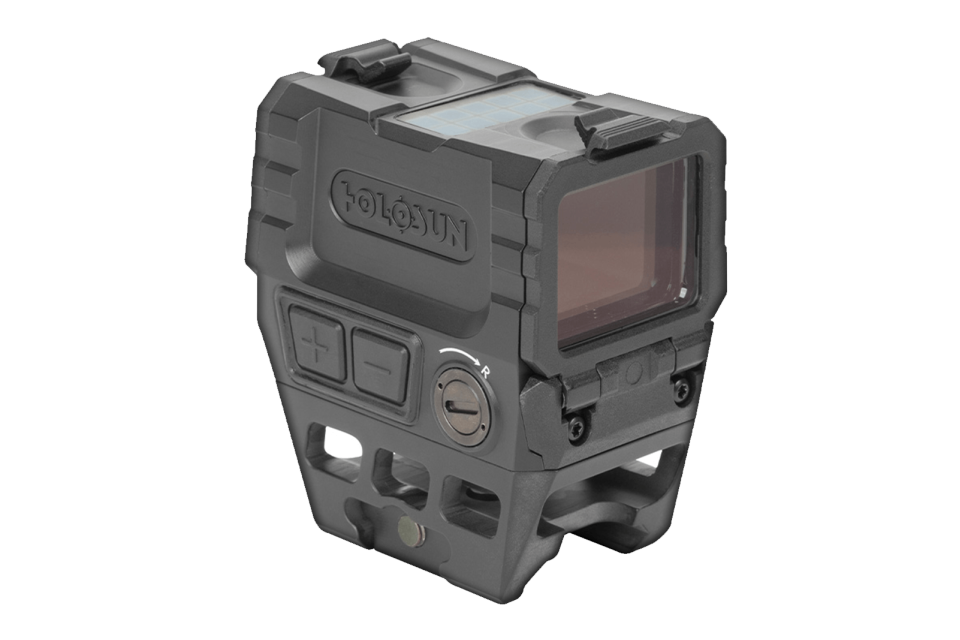

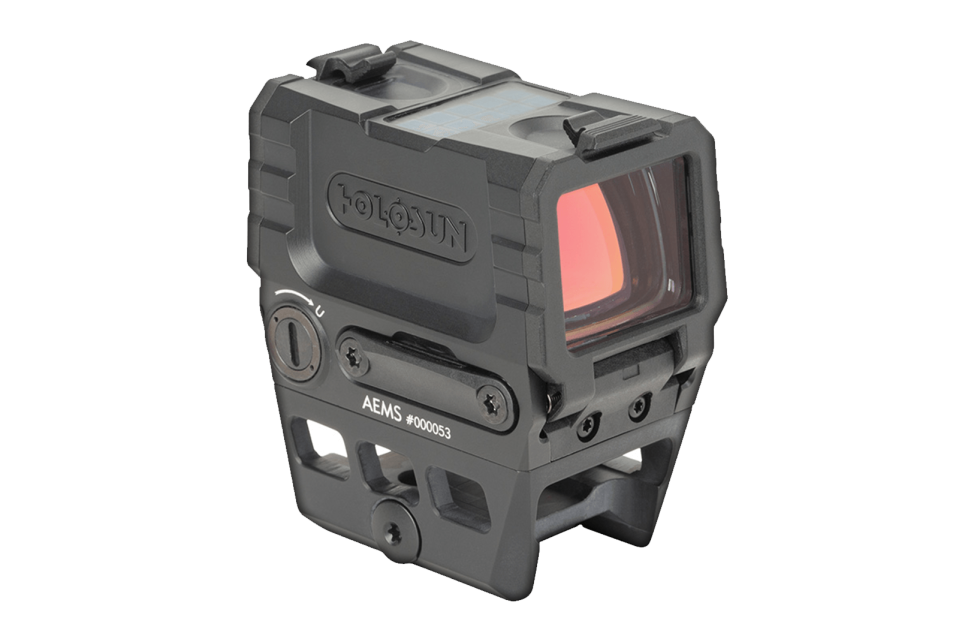

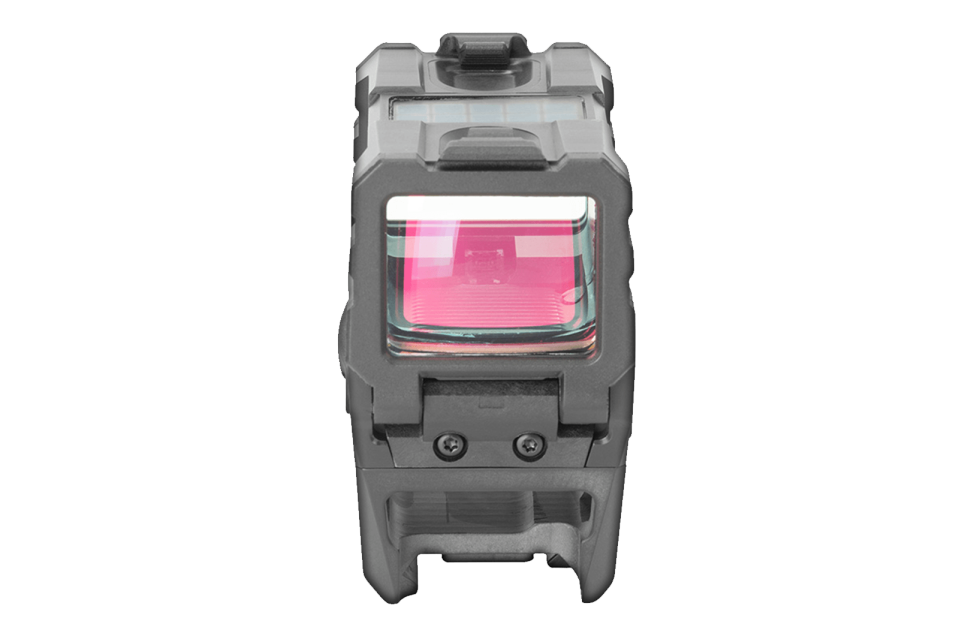

The AEMS-Red (Advanced Enclosed Micro Sight) is a compact optical sight with 2x larger lens surface area than standard 20mm micro style sights for increased FOV. AEMS-Red is made from 7075 aluminum and includes a 1.63” dot height (lower 1/3 co-witness) Picatinny mount.

AEMS features include glass flip-down lens covers, Holosun’s MRS (Multi-Reticle System) with a precision 2MOA dot inside a 65MOA circle, Solar Failsafe, and Shake Awake technology. A side mounted battery trays houses a 2032 battery which provides up to 50k hour battery life. Holosun’s Red Super LED provides 12 intensity settings, 4 of which are night vision compatible.

SPECIFICS

Features
  • Gold Super LED
    2 MOA Gold Dot optimized for enhanced visibility and reduced eye strain.
    540nm wavelength tuned to match peak human eye sensitivity.
  • Solar Failsafe™
    Automatic brightness adjustment in Auto Mode with solar-assisted power management.
  • Shake Awake™ Technology
    Motion-activated LED with last setting recall and automatic shut-off after inactivity.
  • Up to 50,000 Hours Battery Life
  • Large Field of View in a Compact, Lightweight Package
  • Multi-Coated Glass
    Enhanced clarity, light transmission, and glare reduction.
  • Large Field of View in a Compact Form Factor
Optical Specifications
  • Reticle: 2 MOA Dot
  • Reticle Color: Gold
  • Light Wavelength: 540 nm
  • Magnification: 1×
  • Parallax-Free: Yes
  • Unlimited Eye Relief: Yes
  • Window Size: 1.1 × 0.87 in
Electronic Specifications
  • Power Source: Battery
  • Battery Type: 16340
  • Battery Life: Up to 50,000 hours
  • Brightness Settings: 10 Daylight & 2 Night Vision
  • Video Recording: Internal
  • Screen Refresh Rate: 30 FPS / 60 FPS
  • Digital Screen: 1024 × 768 OLED
  • Thermal Modes: N/A
  • Digital Modes: N/A
Mechanical / Environmental Specifications

Mechanical Specifications

  • Housing Material: 7075 T6 Aluminum
  • Surface Finish: Anodized
  • Adjustment per Click: 0.5 MOA
  • Windage & Elevation Range: ±50 MOA
  • Dimensions (L × W × H): 2.2 × 1.54 × 1.7 in
  • Weight: 3.9 oz

Environmental Specifications

  • Submersion Rating: IPX8
  • Operating Temperature: −30°C to 60°C
  • Storage Temperature: −40°C to 70°C
  • Vibration Resistance: 1000G
