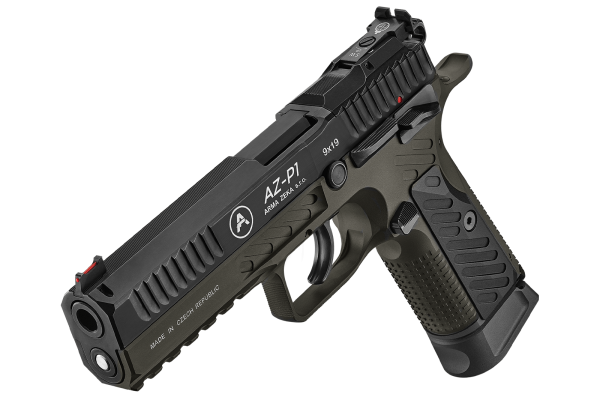

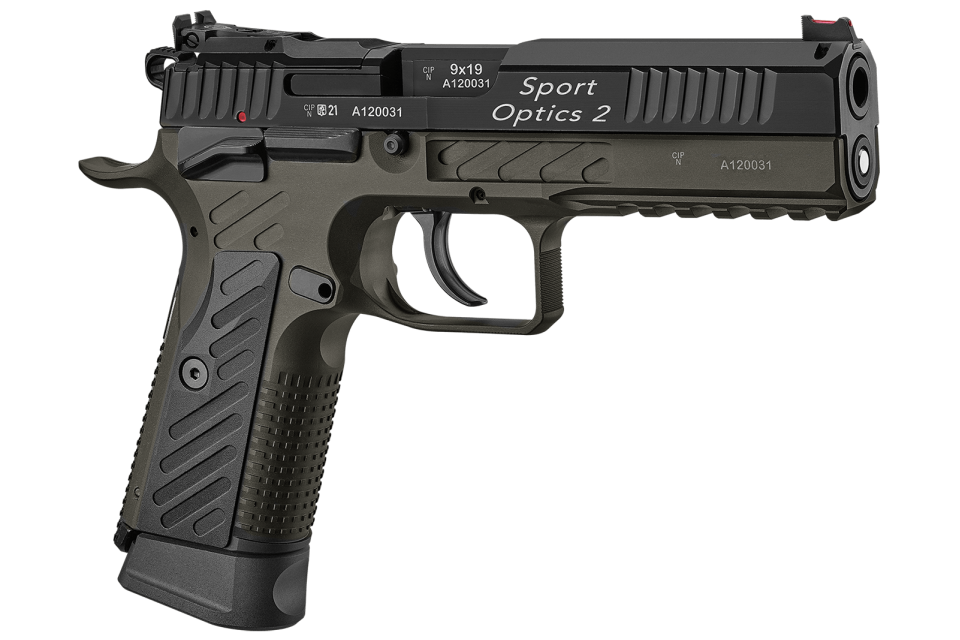

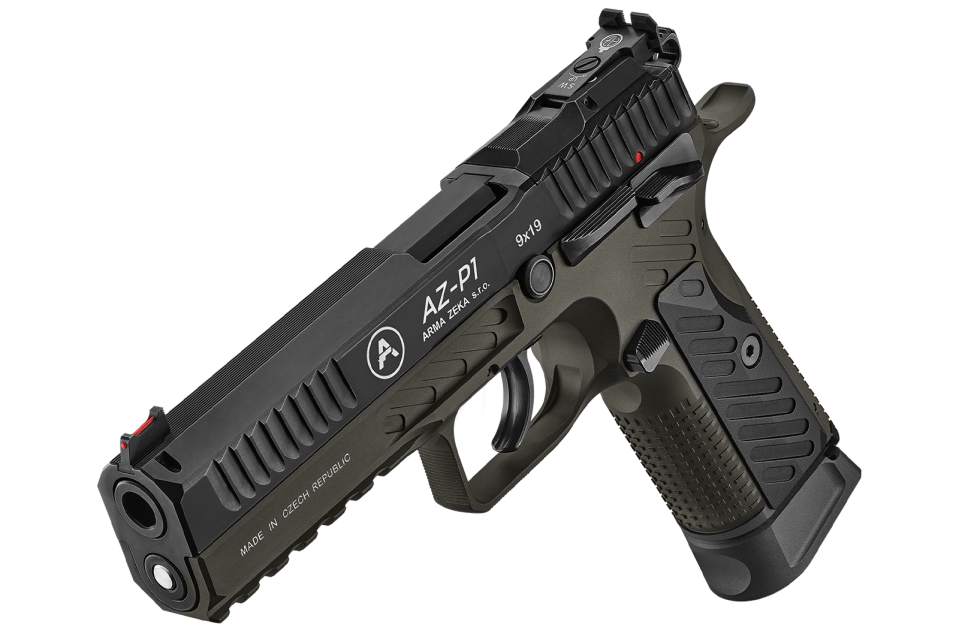

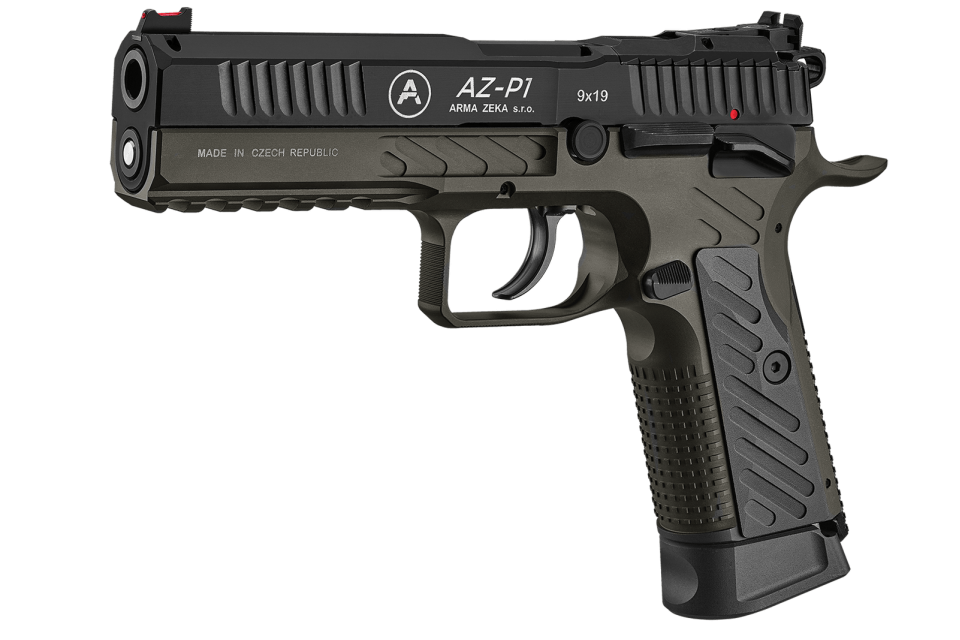

AZ-P1 Sport OR 3rd generation gives us a better grip thanks to improved frame ergonomics and a more pleasant trigger mechanism. Using the modularity of accessories, you can customize the model according to your requirements. This model is also ready for mounting an optical plate, where a red dot can then be mounted. AZ-P1 Sport OR is primarily for sports dynamic shooting and meets all IPSC rules in the Production Optics category.

SPECIFICS

Key features
  • new fine tuned trigger mechanism, point trigger with minimal reset and smooth DA trigger travel
  • preset trigger pull weight approx: SA-1.2KG / DA 3.0KG.
  • possibility to choose the new tipe of the adjustable trigger for lenght of the finger even for SA/DA. with possibility to move trigger tipe forward and backward in relation to a bore axis according to lenght of the finger in range to 9mm, with possibility to change the trigger tip
  • adjusting the weight of the trigger pull by set srew that preloads the trigger spring
  • new type frame with better grip
  • approved to the production category
Specification
  • excelent ergonomy of the frame, sticky surface finish, rough checkering in critic places
  • build in thumb rest as a slot – for certain and defined grip
  • high modularity, changable grips, backstraps, safeties, magazine and slide catches, buffers, triggers,..
  • possibility to assemble barrel with thread for usage of the compensator developed for our AZ-P1 pistols
  • possibility to mount a magwell
  • possibility to choose from 3 color variations- green frame (production), black and silver
  • possibility to choose caliber 9×19(standard)
  • red-dot mount plates available for Trijicon, Vortex/Meored, Shield footprint
  • high quality and exclusively CNC machined full steel/AL construction
  • Sport front sight and adjustable rear sight ZENDL
  • high quality magazines from italian company S.F. Meccanica with floorplate for 17 rounds
  • disassembling pin stays in the frame, that makes the disassembling and assembling of the pistol easier
  • high quality, bull barrel made by the same method as a sniper rifle barrels
  • locking of the slide by barrel to a ejection port by a huge locking nub/tooth
  • perfect surface finish ARCOR,the components are slick and are abrassion resistant
  • ambidextrous controls
  • perfect accuracy
  • long lifetime
  • maximum reliability
  • adjustable trigger mechanism – pretravel, break, overtravel, reset
  • ambidextrous and large safeties serving as a support while shooting
  • possibility to use the gun without grips, in the case of small-handed shooter
  • groovings on the frame for a firm grip
  • roughened backstraps and grips with groovings for a firm grip
Parameters
  • Caliber     9×19
  • Overall lenght [mm] 225
  • Overall heigh [mm] 150
  • Width [mm] 45
  • Weight with empty magazine [g] (empty magazine 105 g) 1134
  • Barrel lenght [mm] 127
  • Amount of barrel grooves 6
  • Rifling twist 250mm right
  • Sight radius [mm] 176
  • Magazine capacity 17 rounds
  • Frame material light alloy
  • Trigger mechanism SA/DA with manual safety
Packing
  • durable plastic case with the possibility to use a lock
  • pistol AZ-P1 Sport OR with 17 round magazine, one extra 17 round magazine, one extra magazine for 17 rounds
  • allen key for grips, one allen key for sight and trigger
  • brush and bore cleaning rod
  • manual and warranty list
  • tha package does not include colimator- possibility of purchasing the red dot mount for variety of collimators
