AZ-P1 Super OR

AZ-P1 Super
arma-zeka-logo

ARMA ZEKA

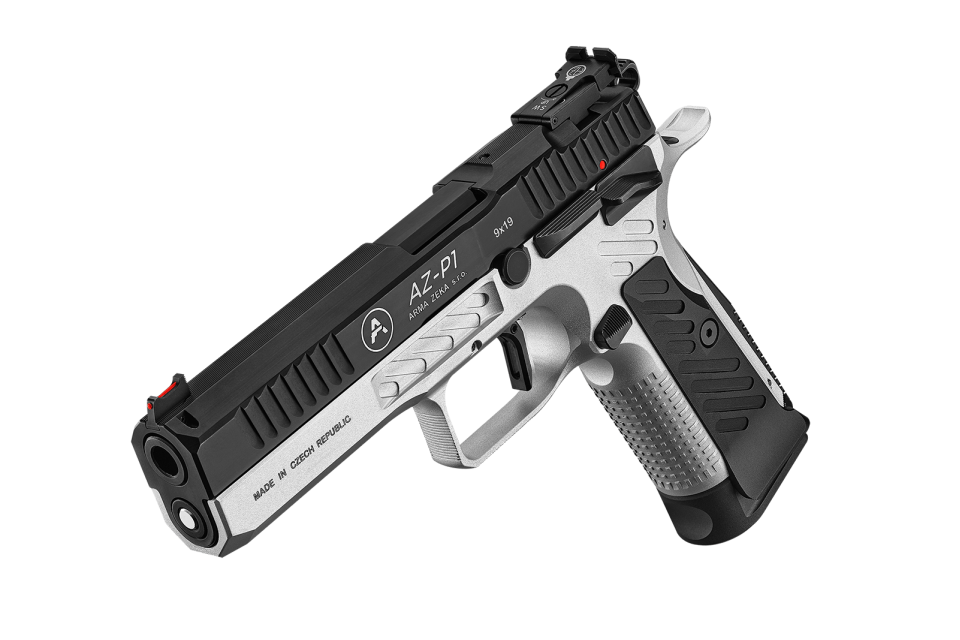

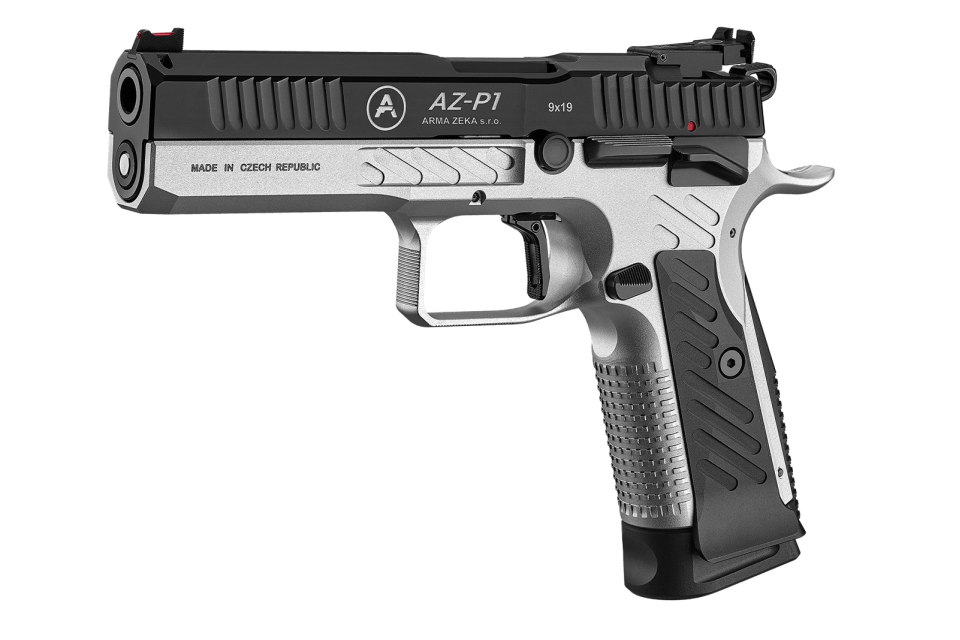

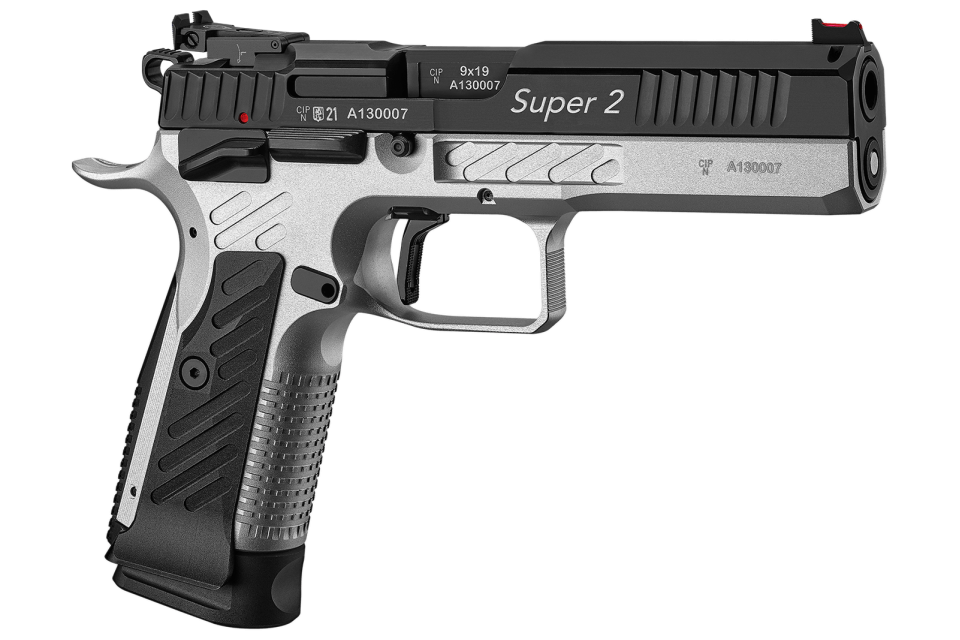

The AZ-P1 Super 3rd generation gives us a better grip thanks to improved frame ergonomics and a smooth and tunable trigger mechanism. Using the modularity of accessories, you can customize the model to your requirements. We also produce this model in .40 S&W caliber. The AZ-P1 Super is designed for target and sports dynamic shooting and meets all IPSC rules in the Standard category.

SPECIFICS

Key features
  • pressed trigger pull weight approx: SA-1.1KG
  • new fine tuned trigger mechanism, point trigger with minimal reset and short trigger travel
  • possibility to move trigger tip forwards and backwards in relation to a bore axis according to lenght of the finger in range to 9mm, with possibility to change the trigger tip
  • adjusting the weight of the trigger pull by set srew that preloads the trigger spring
  • new type frame with better grip
Specification
  • excelent ergonomy of the frame, sticky surface finish, rough checkering in critic places
  • build in thumb rest as a slot – for certain and defined grip
  • high modularity, changable grips, backstraps, safeties, magazine and slide catches, buffers, triggers,..
  • possibility to assemble barrel with thread for usage of the compensator developed for our AZ-P1 pistols
  • possibility to mount a magwell- possibility to choice from 3 color variations- green frame (production), black and silve
  • possibility to choose caliber 9×19(standard), .40S&W, .45 AUTO
  • high quality and exclusively CNC machined full steel/AL construction
  • front sight and adjustable rear sight ZENDL
  • high quality magazines from italian company S.F. Meccanica with basepad for 19 rounds
  • disassembling pin stays in the frame which makes the disassembling and assembling of the pistol easier
  • high quality, bull barrel made by the same method as a sniper rifle barrels
  • locking of the slide by barrel to a ejection port by a huge locking nub/tooth
  • perfect surface finish ARCOR, the components are slick and are abrassion resintant
  • ambidextrous controls
  • perfect accuracy, long lifetime, maximum reliability
  • adjustable trigger mechanism – pretravel, break, overtravel, reset
  • ambidextrous and large safeties serving as a support while shooting
  • possibility to use the gun without grips, in the case of small-handed shooter
  • groovings on the frame for a firm grip
  • roughened backstraps and grips with groovings for a firm grip
Parameters
  • Calibre 9×19, .40S&W, .45AUTO
  • Overall lenght [mm] 225
  • Overall height[mm] 150
  • Width [mm] 45
  • Weight with empty magazine [g] (empty magazine 105 g) 1140
  • Barrel lenght [mm] 127
  • Amount of barrel grooves 6
  • Rifling twist 250mm right
  • Sight radius [mm] 176
  • Magazine capacity 19 rounds
  • Frame material light alloy
  • Trigger mechanism SA with manual safety
Packing
  • durable plastic case with the possibility to use the lock
  • pistol AZ-P1 Super with Zendl sights and 19 rounds magazine, one extra 19 rounds magazine
  • allen key for grips, allen key for sight and trigger
  • brush and bore cleaning rod
  • manual and warranty list
